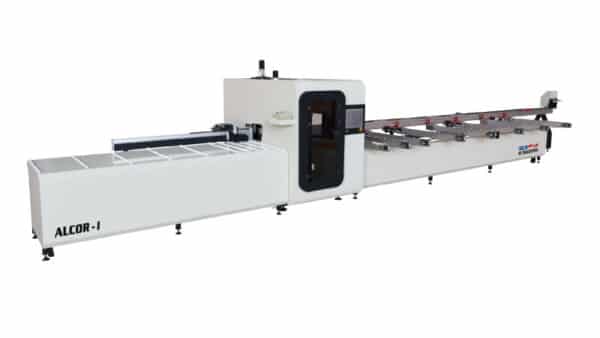

Oz Machine ALCOR – I CNC Controlled Profile Cutting Center (3 Axis)

Oz Machine ALCOR – I CNC Controlled Profile Cutting Center (3 Axis)

Used for cutting processes of aluminum and PVC profiles.

Categories: , , Teknik Bilgiler:   <p><img loading="lazy" decoding="async" class="alignnone wp-image-5942" src="https://e-peak.net/epeak/wp-content/uploads/2021/04/Adsiz-300x72.png" alt="" width="541" height="130" srcset="https://e-peak.net/epeak/wp-content/uploads/2021/04/Adsiz-300x72.png 300w, https://e-peak.net/epeak/wp-content/uploads/2021/04/Adsiz.png 556w" sizes="auto, (max-width: 541px) 100vw, 541px" /></p>
Özçelik

Used for cutting processes of aluminum and PVC profiles.

  • Servo controlled cutting
  • Servo controlled rotation axis
  • Automatic positioning at all degrees between 30° and 150° with servo motion system
  • Pneumatic holder robot with servo axis control and manual adjustment feature for accurate positioning of profiles
  • Industrial PC with Windows based touchscreen and easy to use practical interface
  • Remote access
  • Data transfer over remote network connection, Ethernet and USB
  • Guard cabin for cutting area
  • Process programming and large memory
  • Adjustable saw blade travel speed
  • Ability to perform cutting automatically from the list or manually
  • Discharge unit with pneumatic conveying system
  • Resume cutting feature (emergency stops, blackouts, etc.) provides cutting advice by making a full scan in cutting list and detecting uncut pieces
  • Ability to send bar code information of different profile batches by profile list input without using a cutting optimization program and ability to choose profile from the list in batch cutting
  • Feeding capacity for 10 profiles
  • High cutting capacity to increase efficiency
  • High speed axis movements
  • Automatic lubrication in processing are
