Door Assembly Table

Door Assembly Table

Table for pre-assembly of accessories and gaskets

Category: Tags: , , , , , , Teknik Bilgiler:   <ul> <li>Length 2.000 mm</li> <li>Width 850 mm</li> <li>Height 1.970 mm</li> <li>Weight 145 kg</li> <li>Air consumption approx. 20 l / min.</li> <li>Air pressure: 7 bar</li> </ul>

Assembly table for pre-assembly of accessories and gaskets

  • Sturdy steel construction
  • Work bench for all pre-assembly work of all accessories and gaskets on aluminum windows and aluminum doors

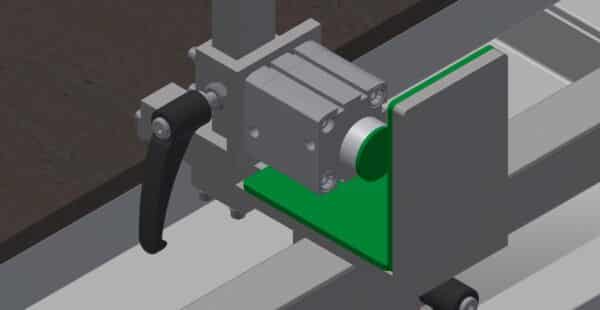

  • Equipped with two clamps
  • Mounting device for profiles with 45 – 120 mm mounting depth, 50 – 150 mm visible width
  • Fastening position adjustable
  • The binding roller is activated via the foot switch
  • 180 ° turning device can be fixed via foot switch in 30 ° steps for tied profiles
  • Support arms for long parts

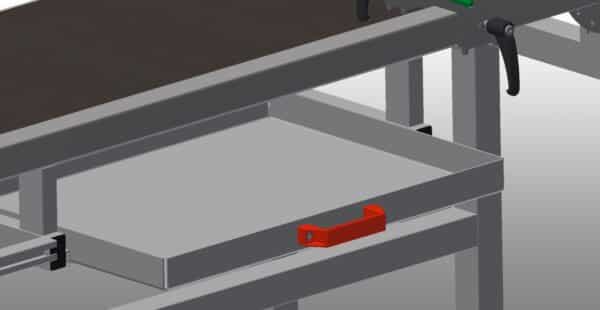

  • 2 compartments for tools and small parts
  • Drawer for tools
  • Holder for screwdriver and drill
  • 4-way compressed air connection
  • Double Schuko sockets
  • Length 2.000 mm
  • Width 850 mm
  • Height 1.970 mm
  • Weight 145 kg
  • Air consumption approx. 20 l / min.
  • Air pressure: 7 bar
