Epk 2800 Casement Assembly Center

Epk 2800 Casement Assembly Center

Center for accessory mounting of plastic and aluminum window casement

Category: Tags: , , , , , , Teknik Bilgiler:   <ul> <li>Bench length 2.800 mm</li> <li>Bench width 1.400 mm</li> <li>Total length: 3.400 mm</li> <li>Total width: 2.000 mm</li> <li>Weight 450 kg</li> <li>Bench height can be adjusted between 850 – 1.000 mm</li> <li>Bench inclination approx.15 °</li> <li>Wing inner dimensions approximately 280 – 2.300 mm</li> <li>Air pressure: 7 bar</li> <li>Screwdriver approx. 250 l / min.</li> <li>Air consumption:</li> <li>Clamping device approx. 35 l / min.</li> </ul> <p><strong>Screw dimensions:</strong></p> <ul> <li>Head diameter: 6.0 – 9.0 mm</li> <li>Shaft diameter 3.0 – 4.5 mm</li> <li>Length approx.10.0 – 35.0 mm</li> <li>Electricity: 230/400 V, 3 ~, 50 Hz</li> <li>Electrical connection power approx. 3 W</li> </ul>

Support center for accessory mounting of plastic and aluminum window casement

  • Screwing the accessories ergonomically in the shortest possible time
  • Wing assembly bench for measuring and cutting accessory parts.
  • Optimizing wing processing by combining various work steps in one working cycle
  • Pneumatically tilting assembly table
  • Pneumatically movable blade, measuring and centering device
  • Accessory punching with fixed stoppers in the middle for the handle holder
  • Two stopper wedges for different wing widths

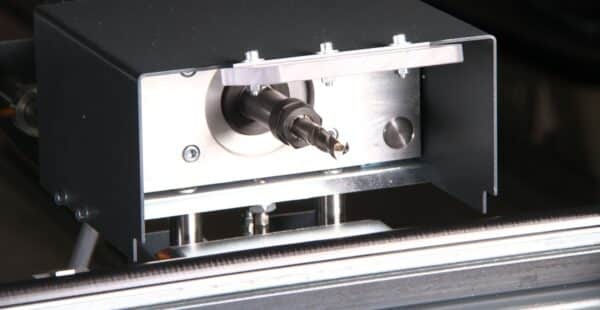

  • Movable screwdriver unit with pneumatic height adjustment
  • Manual feed hopper for the second screw length
  • Automatic depth stop
  • Screw feeder
  • Bench surface with plastic guide rails
  • Bench length 2.800 mm
  • Bench width 1.400 mm
  • Total length: 3.400 mm
  • Total width: 2.000 mm
  • Weight 450 kg
  • Bench height can be adjusted between 850 – 1.000 mm
  • Bench inclination approx.15 °
  • Wing inner dimensions approximately 280 – 2.300 mm
  • Air pressure: 7 bar
  • Screwdriver approx. 250 l / min.
  • Air consumption:
  • Clamping device approx. 35 l / min.

Screw dimensions:

  • Head diameter: 6.0 – 9.0 mm
  • Shaft diameter 3.0 – 4.5 mm
  • Length approx.10.0 – 35.0 mm
  • Electricity: 230/400 V, 3 ~, 50 Hz
  • Electrical connection power approx. 3 W
