Glazing Table

Glazing Table

Table for assembly and gasket insertion

Category: Tags: , , , , , , Teknik Bilgiler:   <ul> <li>Length 3.000 mm</li> <li>Weight 240 kg</li> <li>Width 1.300 mm</li> <li>Carrying capacity 200 kg</li> <li>Adjustable height 850 – 1.000 mm</li> <li>Air pressure: 7 bar</li> <li>Pneumatic stroke inner workbench 150 mm</li> <li>Air consumption approx. 35 l / min.</li> </ul>

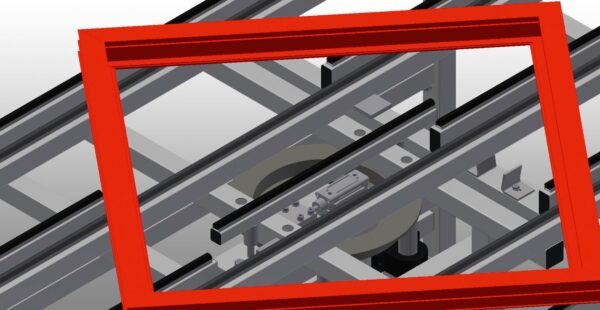

Lift-turn table for assembly and gasket insertion

  • Durable steel construction
  • Ideal for mounting and placing gaskets
  • Height adjustable
  • The inner bench can be adjusted pneumatically
  • Inner bench can be rotated with pneumatic parking brake

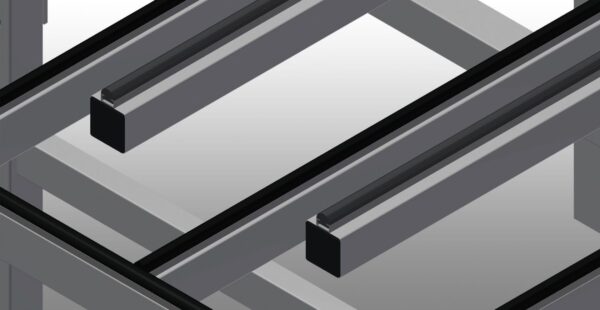

  • Internal counter with rubber lath
  • Outer workbench with plastic guide rails
  • 4-way compressed air connection

Options

  • Upon request, the outer bench can be supplied with rubber profile (for aluminum profiles)
  • Length 3.000 mm
  • Weight 240 kg
  • Width 1.300 mm
  • Carrying capacity 200 kg
  • Adjustable height 850 – 1.000 mm
  • Air pressure: 7 bar
  • Pneumatic stroke inner workbench 150 mm
  • Air consumption approx. 35 l / min.
